• Wheels, 16" x 7" (40.6 cm x 17.8 cm) Ultra Silver Metallic cast aluminum
• Tires, 265/70R16 all-season, blackwall
• Tire, spare 265/70R16 all-season, blackwall (Included and only available with (S1K) 16" x 7" spare, steel wheel.)
• Bumper, rear Chrome
• CornerStep, rear bumper
• Moldings, Black beltline
• Headlamps, halogen projector-type with LED signature
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside manual-folding, Black
• Glass, windshield shade band
• Door handles, Black
• Tailgate, locking (When (PCM) Convenience Package is ordered (EN5) locking tailgate is removed and replaced with (A91) Remote Locking Tailgate.)
• Tailgate handle, Black

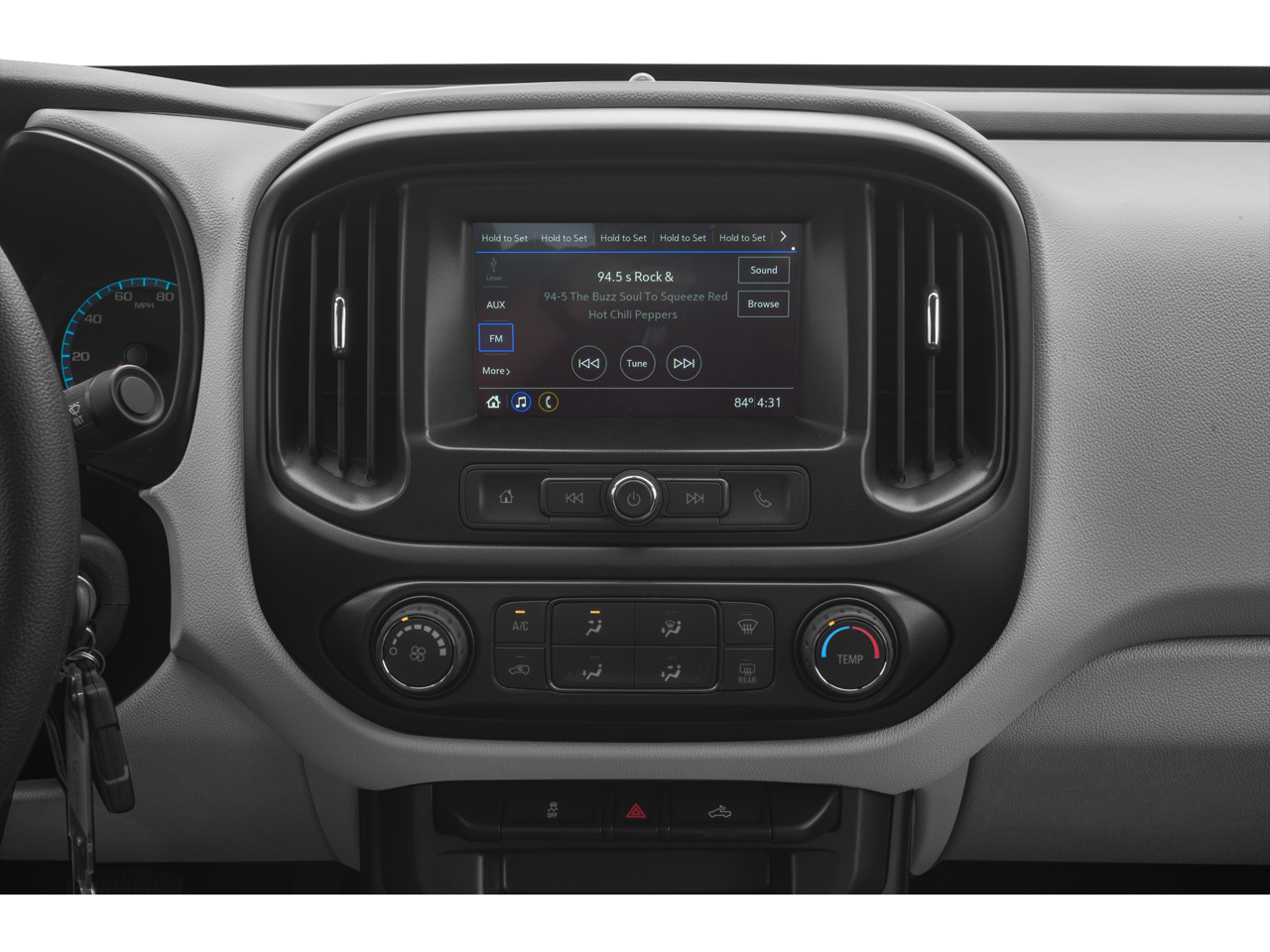

• Audio system, GMC Infotainment System with 7" diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phones
• Audio system feature, 6-speaker system

• Seats, front bucket
• Seat trim, Cloth
• Seat adjuster, driver 4-way power with manual recline
• Seat adjuster, passenger 2-way manual, fore/aft with manual recline

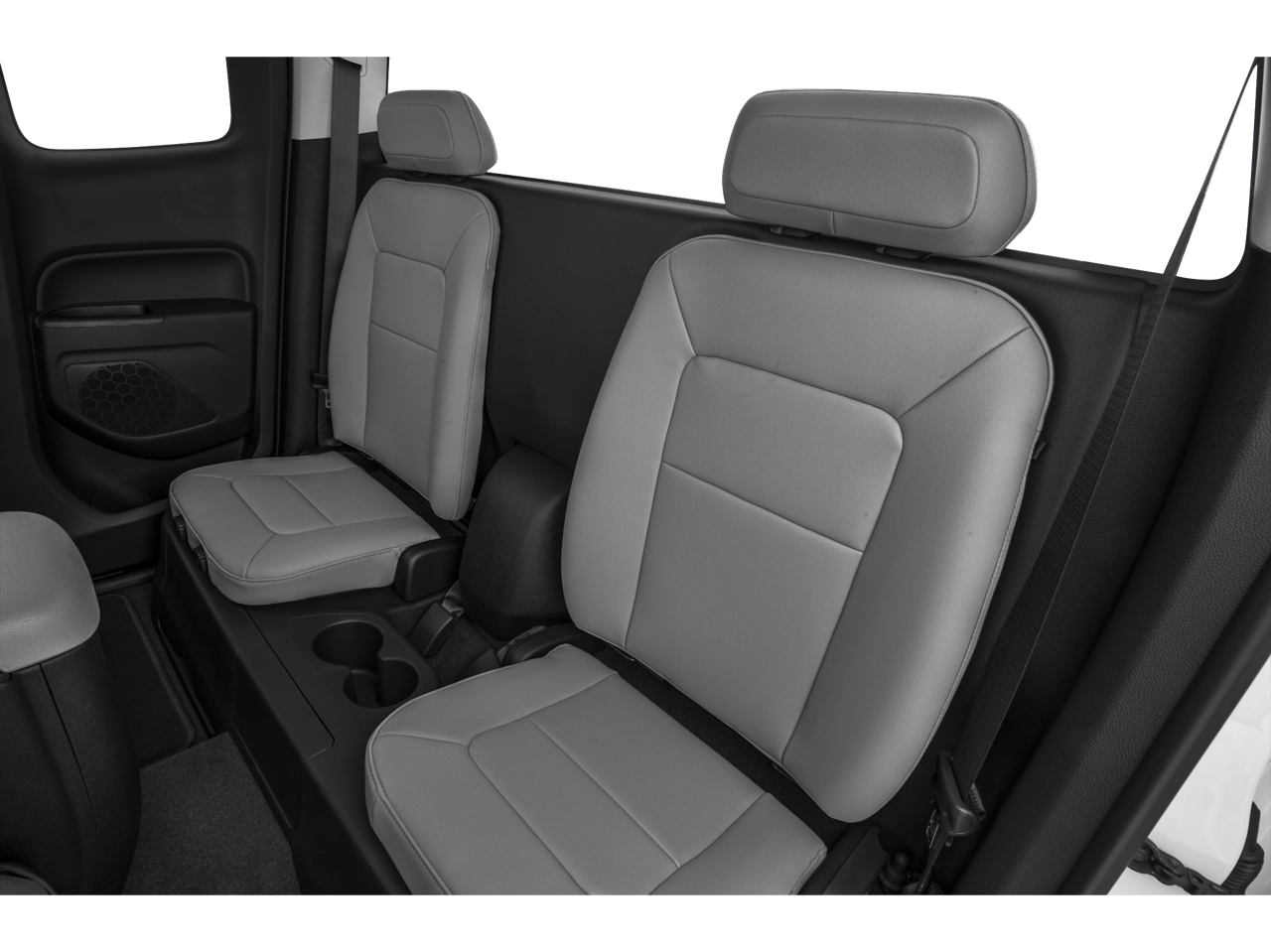

• Seats, dual rear with underseat storage

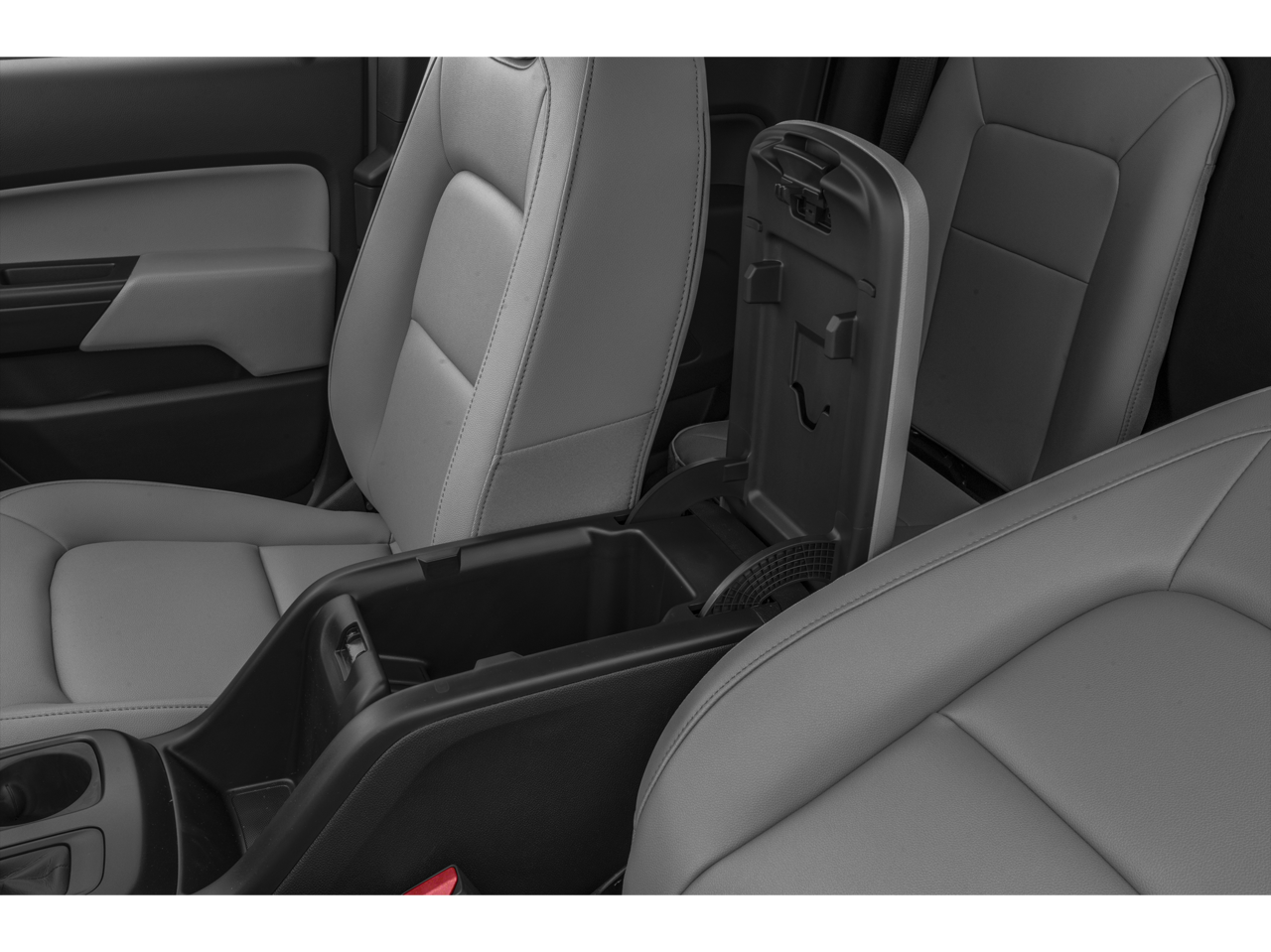

• Console, floor, front compartment, custom
• Floor covering, color-keyed carpeting
• Floor mats, carpeted front (Deleted when (B38) full-length Black vinyl floor covering is ordered. Requires (B30) color-keyed carpeting floor covering.)
• Floor mats, carpeted rear (Requires (B30) color-keyed carpeting floor covering.)

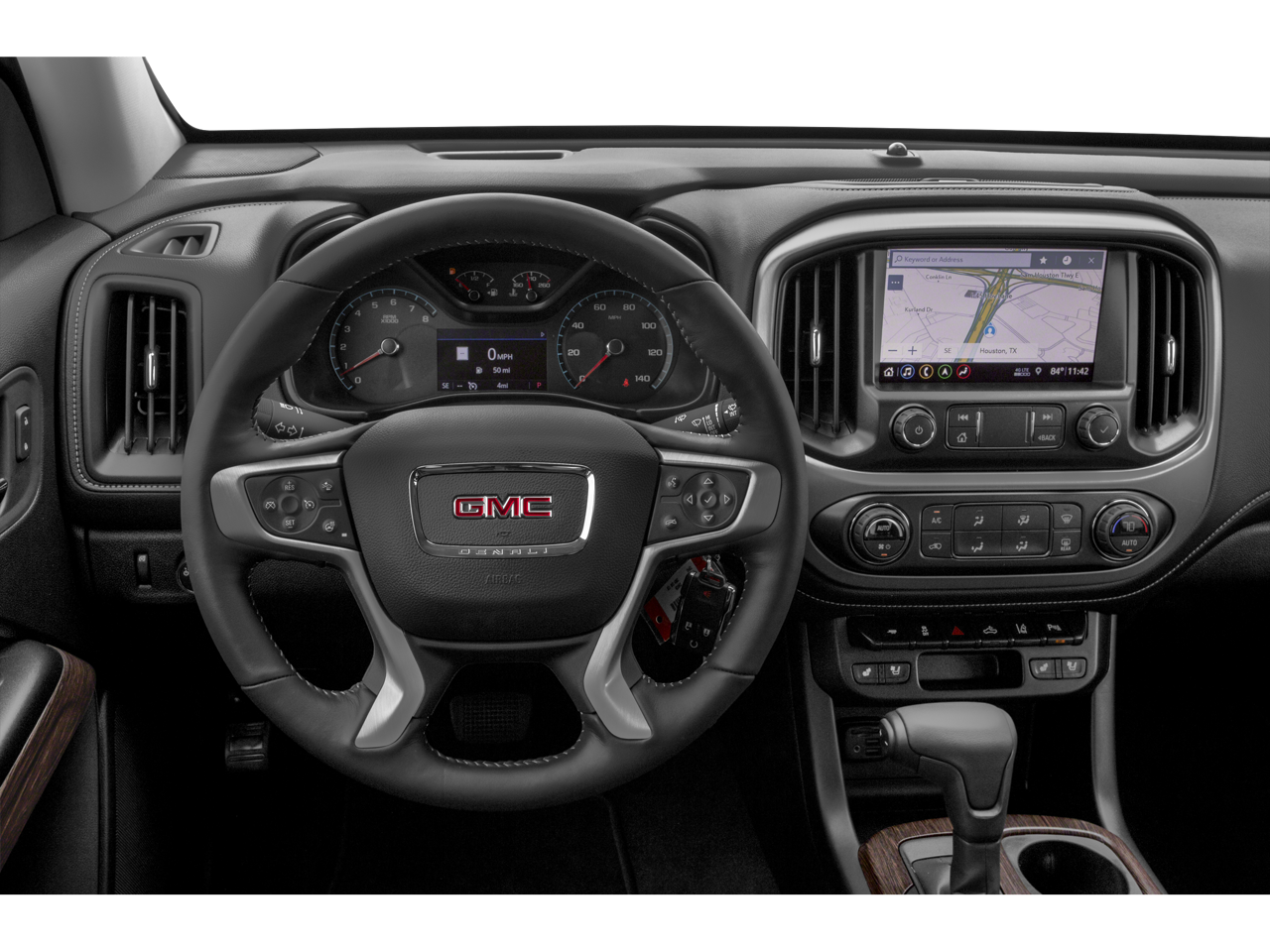

• Steering wheel, urethane
• Steering column, tilt, manual
• Speedometer, miles/kilometers
• Display, driver instrument information enhanced, one color
• Door locks, power
• Windows, power with driver Express-Up and Down
• Theft-deterrent system, immobilization
• USB data ports, 2 includes auxiliary input jack, located on the front console
• Air conditioning, single-zone manual climate control
• Handles, door release, front and rear, Jet Black
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger with passenger vanity mirror
• Lighting, interior, center dome

• StabiliTrak, stability control system
• Traction control, electronic
• Daytime Running Lamps
• Airbags, Dual-stage frontal airbags for driver and front passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. It includes the Buckle-to-Drive feature which prevents the driver from shifting from Park for up to 20 seconds if the driver's seat belt is not buckled. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System (does not apply to spare tire)
• Tire Fill Alert provides an audible and visual indication when tire pressure is added to a tire that is low. Aids to achieve optimal tire pressure

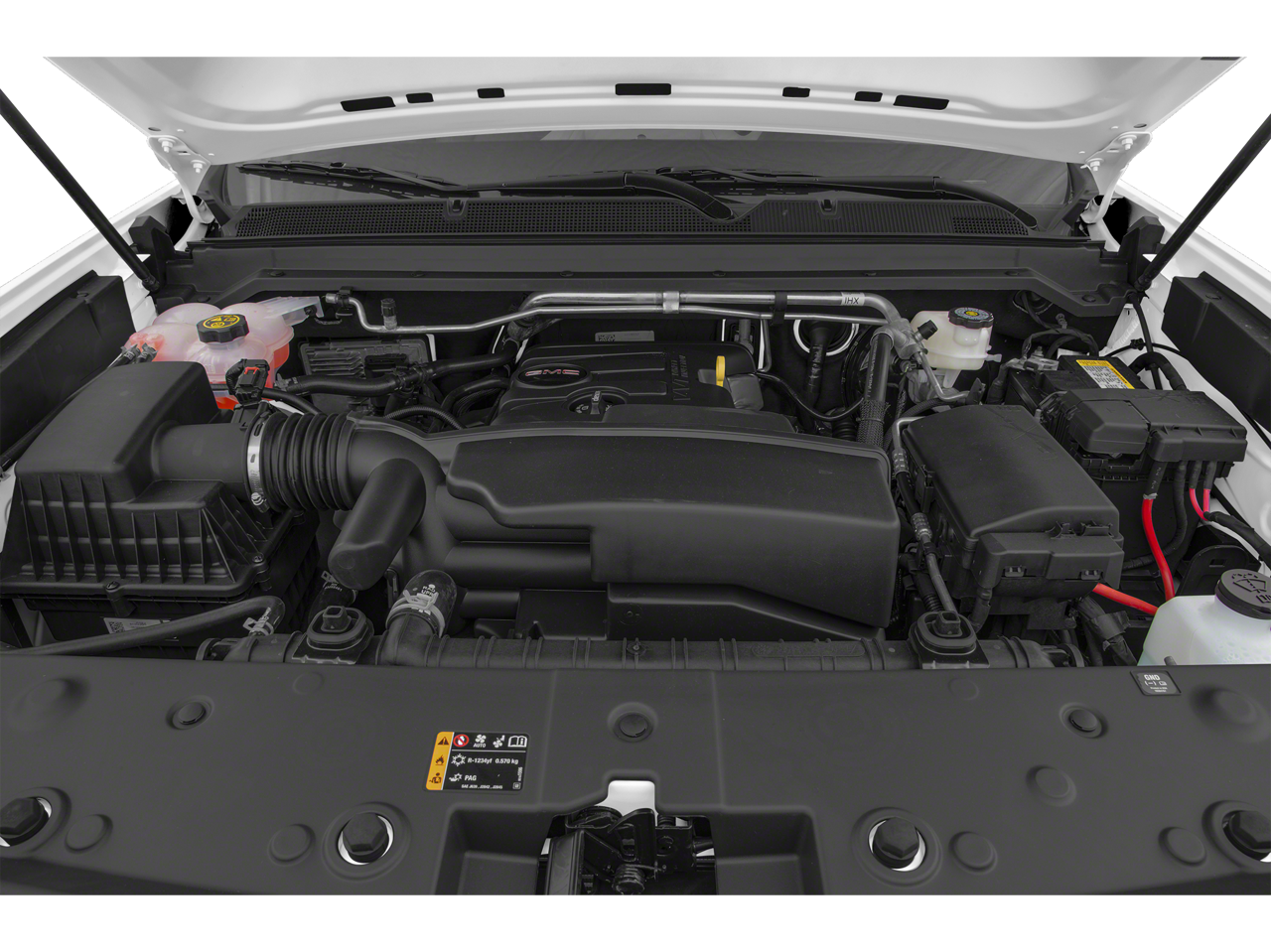

ENGINE, 3.6L DI DOHC V6 VVT

• (308 hp [230.0 kW] @ 6800 rpm
• 275 lb-ft of torque [373 N-m] @ 4000 rpm) (STD)

• Preferred Equipment Group 4VL
• 3.42 Rear Axle Ratio
• Automatic Locking Rear Differential
• Wheels: 16" x 7" Ultra Silver Metallic
• Vinyl Seat Trim
• Convenience Package
• Radio: AM/FM w/7" Diagonal Color Touch-Screen
• All-Weather Floor Liner (LPO)
• Front License Plate Kit
• Trailering Package
• Integrated Trailer Brake Controller
• Tow/Haul Mode
• Remote Locking Tailgate
• Driver 4-Way Power Seat Adjuster
• Remote Keyless Entry
• Rear-Window Electric Defogger
• Trailering Assist Guideline Hitch Guidance
• Electronic Automatic Cruise Control
• 2-Speed Autotrac Electric Transfer Case
• EZ-Lift & Lower Tailgate
• 6-Speaker Audio System Feature
• Unauthorized Entry Theft-Deterrent System
• 4-Wheel Disc Brakes
• Apple CarPlay/Android Auto
• Premium audio system: GMC Infotainment System
• Exterior Parking Camera Rear
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Speed-sensing steering
• Rear step bumper
• Radio data system
• Power windows
• Power steering
• Power driver seat
• Passenger vanity mirror
• Passenger door bin
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• Bumpers: body-color
• Alloy wheels
• AM/FM radio
• ABS brakes
• Tachometer
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning
• 6 Speakers

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 24
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3200
• Gross Axle Wt Rating - Rear (lbs): 3500
• Curb Weight - Front (lbs): 2183
• Curb Weight - Rear (lbs): 1659
• Gross Vehicle Weight Rating Cap (lbs): 5900
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 700
• Maximum Trailering Capacity (lbs): 7000
• Suspension
• Suspension Type - Front: Independent Coil
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3200
• Spring Capacity - Rear (lbs): 3500
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3200
• Axle Capacity - Rear (lbs): 3500
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.2 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 12.75 x - TBD -
• Tires
• Front Tire Order Code: QJJ
• Rear Tire Order Code: QJJ
• Spare Tire Order Code: ZJJ
• Front Tire Size: 265/70R16
• Rear Tire Size: 265/70R16
• Spare Tire Size: 265/70R16
• Front Tire Capacity (lbs): 3200
• Rear Tire Capacity (lbs): 3500
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 21
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 128.3
• Length, Overall (in): 212.4
• Width, Max w/o mirrors (in): 74.3
• Height, Overall (in): 70.3
• Overhang, Front (in): 36.9
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 36.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 74
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 57.8
• Cargo Box Width @ Wheelhousings (in): 44.4
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 49.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): 41.4
• Front Leg Room (in): 45
• Front Shoulder Room (in): 57.5
• Front Hip Room (in): 55
• Second Head Room (in): 36.7
• Second Leg Room (in): 28.6
• Second Shoulder Room (in): 57.3
• Second Hip Room (in): 52.2
• Summary
• Vehicle Name: GMC Canyon
• Body Style: Extended Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
